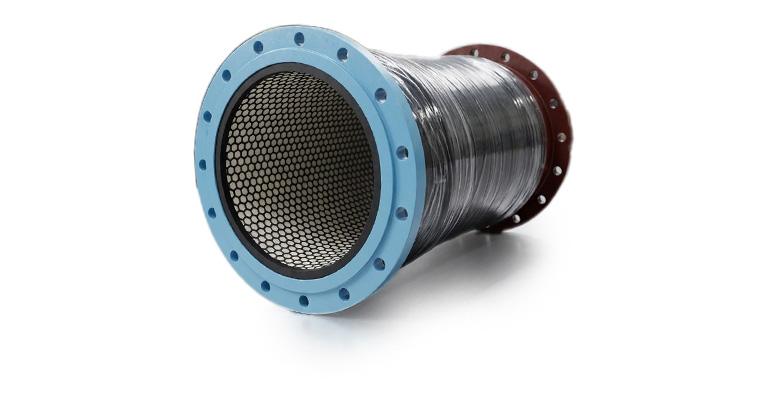

MT111 Ceramic Hose
Features :
- 3-year Limited Warranty
- Water Resistant (Ceramic lining is 12 times more wear
resistant than steel) - 5 bar to 20 bar working pressure
- High working temperatures upto 120°C
- Impact, Corrosion Resistant
- Flange as per Customer Requirement
Construction :

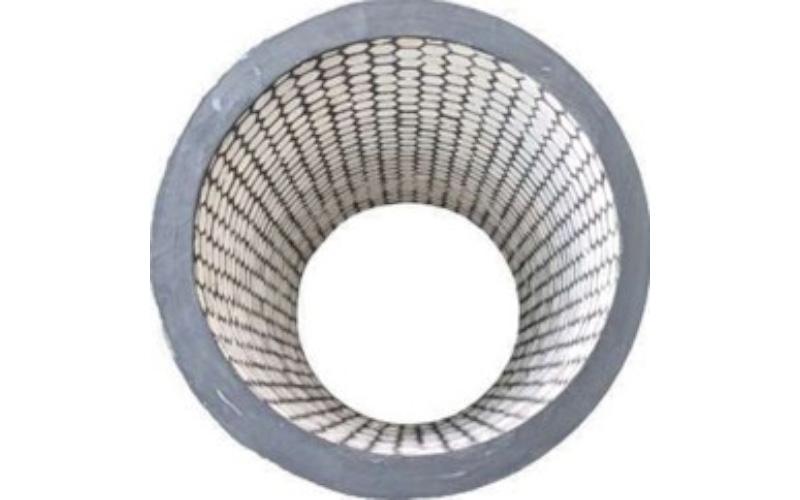

1) Tube: Ceramic Honeycomb Layer bonded with blend of
Synthetic and Natural Rubber.
2) Reinforcement: High Tensile Cord Reinforcement
3) Cover: EPDM Rubber, Glass Fiber.
4) Working Temperature: -25°C to +120°C (-13°F to +250°F)
Areas of Use :

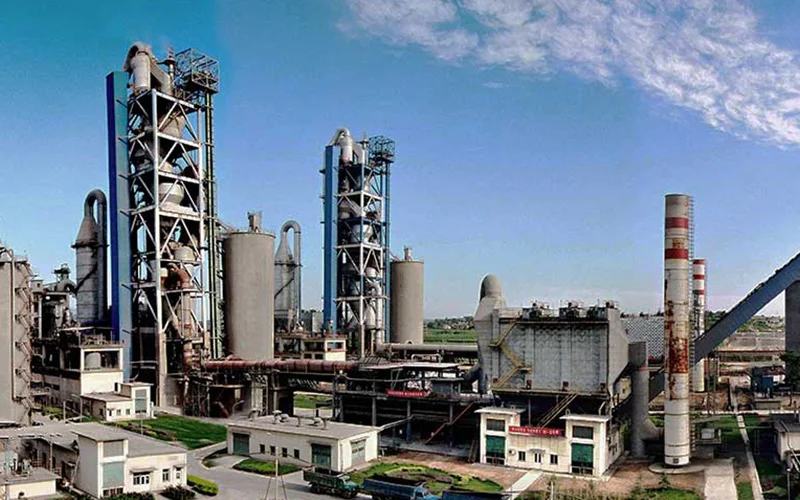

- Thermal Power Plants, Cement Plants.
- Ore Dressing plants, Coal & Steel Plants.

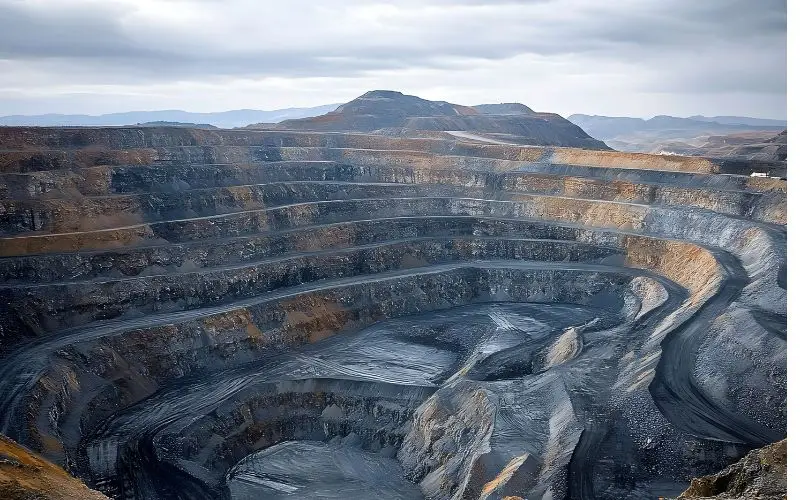

- Mining Industries, High abrasive particle transfers etc.
Sr No. | Hose ID(Inch) | Hose ID(NB) | Working Pressure(Bar) | Burst Pressure(Bar) | Length(MTR) |
|---|---|---|---|---|---|
1 | 1.5 | 380 | 5-20 | 20-60 | Upto 11.8 meters |
2 | 4 | 100 | 5-20 | 20-60 | Upto 11.8 meters |
3 | 8 | 200 | 5-20 | 20-60 | Upto 11.8 meters |
4 | 10 | 250 | 5-20 | 20-60 | Upto 11.8 meters |
5 | 14 | 350 | 5-20 | 20-60 | Upto 11.8 meters |
6 | 20 | 500 | 5-20 | 20-60 | Upto 11.8 meters |
7 | 24 | 600 | 5-20 | 20-60 | Upto 11.8 meters |
Note: Specifications can be made upon request.

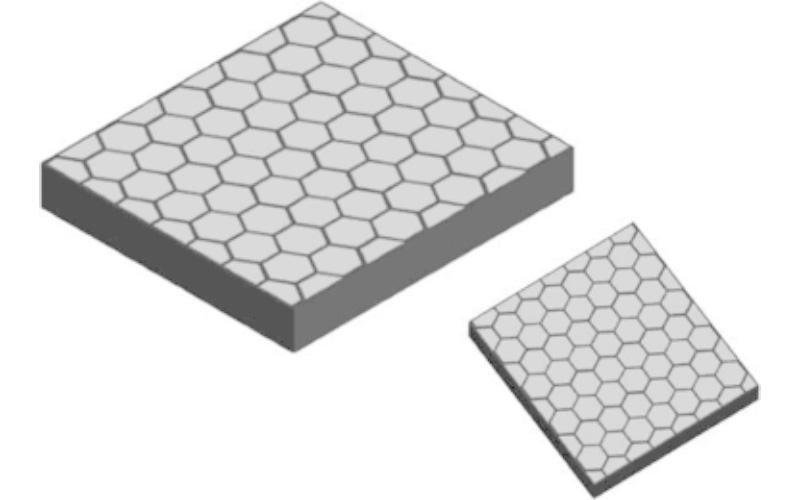

Ceramic Rubber Pads
Features :
- Wear Resistant Ceramic layer
- Impact Resistance
- High abrasion resistance
- Chemical Resistant
- Corrosion Resistant
- Customized Sizes
Construction :
1) Ceramic Honeycomb Layer bonded with
blend of Synthetic and Natural Rubber
2) High Tensile Rubber layer
3) Bottom CN layer for bonding
Areas of Use :
- Conveyor Systems, chutes, feeders of Ore Dressing plants.
- Coal & Steel Plants, Mining Industries,High abrasive particle transfers

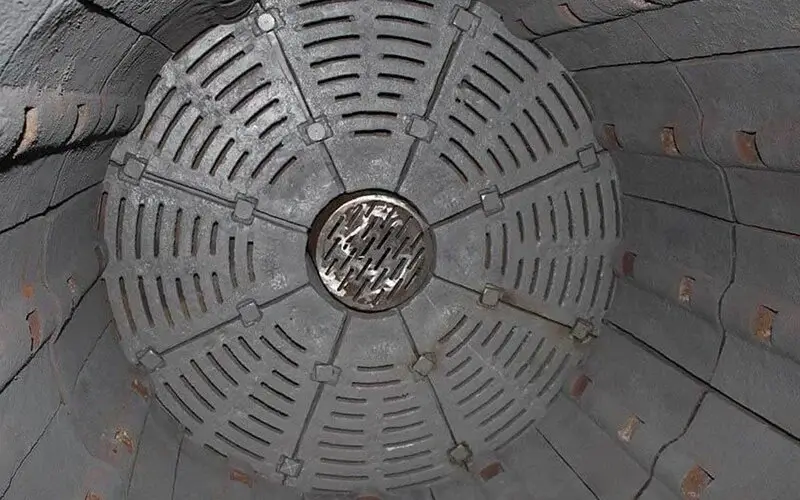

- Ball Mill Liners, Hoppers etc.
Sr No. | Size( in mm) | Ceramic Thickness | Rubber Thickness | Pad Thickness |
|---|---|---|---|---|
1 | 150 × 150 | 8 | 17 | 25 |
2 | 200 × 150 | 8 | 15 | 25 |
3 | 250 x 150 | 10 | 20 | 30 |
4 | 300 × 150 | 13 | 22 | 35 |
5 | 350 × 150 | 13 | 22 | 35 |
6 | 400 × 150 | 20 | 25 | 45 |
7 | 500 × 150 | 20 | 25 | 45 |
Note: Specifications can be made upon request.
